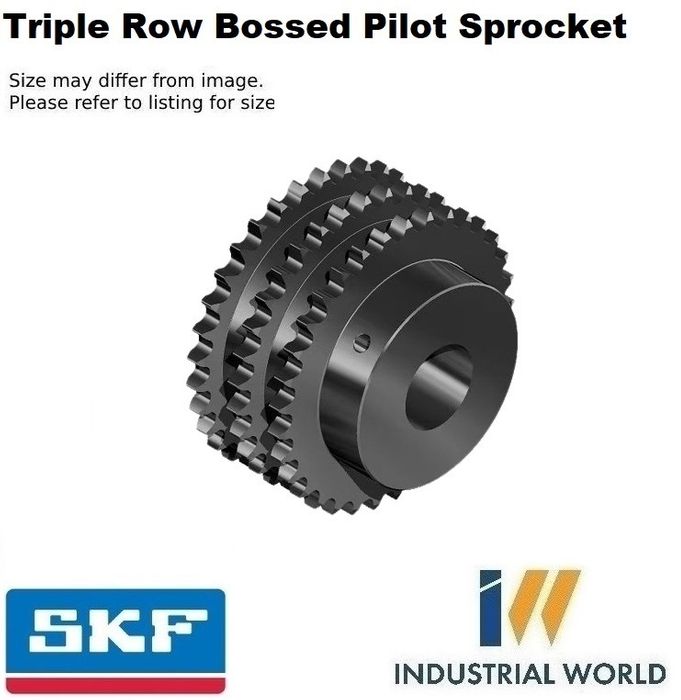

SKF - 06B2 (3/8) SPROCKET 20 TEETH 2 ROW

TRIPLE ROW - BOSSED - PILOT (PHS 06B-3BH20)
Stock Code:
SPR-06B3-20-PB_SKF
$19.58 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-06B3-20-PB

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel
Pitch P (mm)9.52
Pitch P (in)0.37
No. of teeth20
Pitch diameter (mm)60.89
Pitch diameter (in)2.4
Min. bore (mm)12
Min. bore (in)0.47
Max. bore (mm)30
Max. bore (in)1.18
Hub H (mm)49
Hub H (in)1.93
Hub L (mm)35
Hub L (in)1.38
Weight (kg)0.77
Weight (lbs)1.7

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Number of Rows:
    3 Row
  • Pitch:
    3/8 Inch
  • Chain Series:
    BRITISH
  • Type:
    PILOT BORE SPROCKET
  • Size:
    20
  • Chain Size:
    06B3 (TRIPLE ROW)
