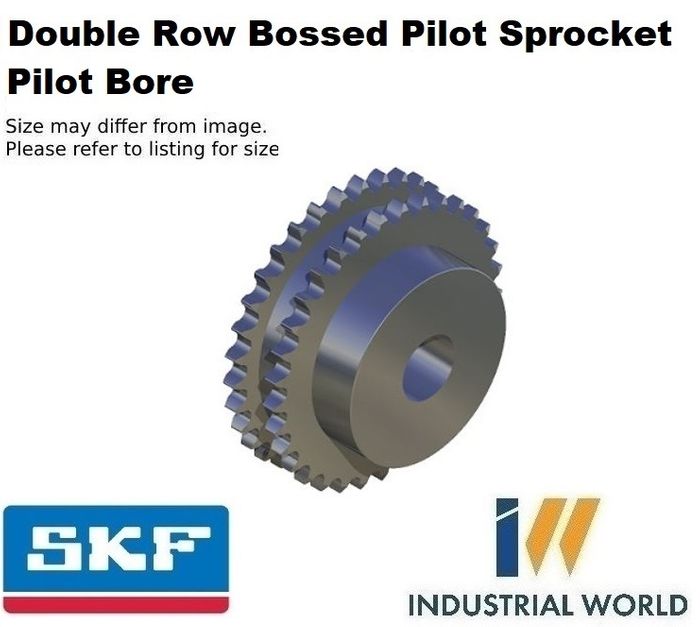

SKF - 10B2 (5/8) SPROCKET 26 TEETH 2 ROW

DOUBLE ROW - BOSSED - PILOT (PHS 10B-2BH26)
Stock Code:
SPR-10B2-26-PB_SKF
$78.24 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-10B2-26-PB

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

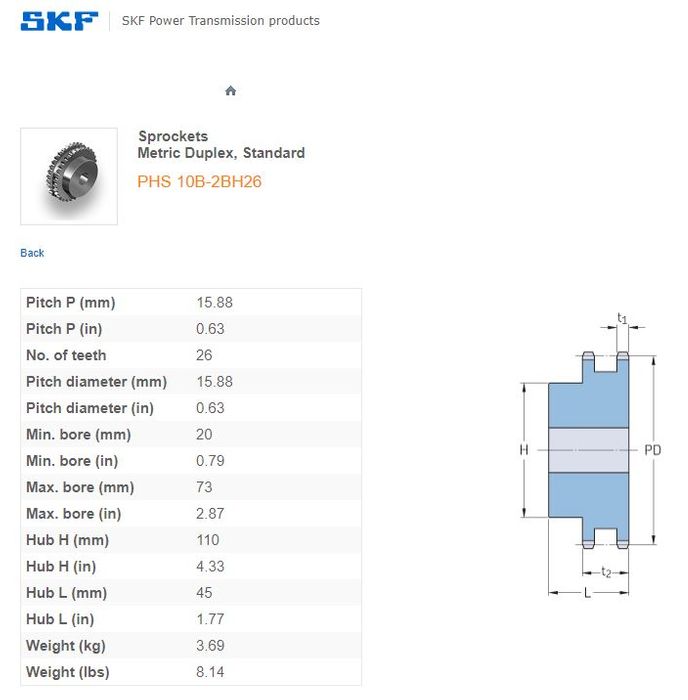

Pitch P (mm)15.88
Pitch P (in)0.63
No. of teeth26
Pitch diameter (mm)15.88
Pitch diameter (in)0.63
Min. bore (mm)20
Min. bore (in)0.79
Max. bore (mm)73
Max. bore (in)2.87
Hub H (mm)110
Hub H (in)4.33
Hub L (mm)45
Hub L (in)1.77
Weight (kg)3.69
Weight (lbs)8.14

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Number of Rows:
    2 Row
  • Pitch:
    5/8 Inch
  • Chain Series:
    BRITISH
  • Type:
    PILOT BORE SPROCKET
  • Size:
    26
  • Chain Size:
    10B2 (DOUBLE ROW)
