SKF - Deep Groove Ball Bearing

40 X 68 X 15
Stock Code:
6008-2RZ-TN9-HC5-C3-WT_SKF
$109,998.90 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6008-2RZTN9/HC5C3WT

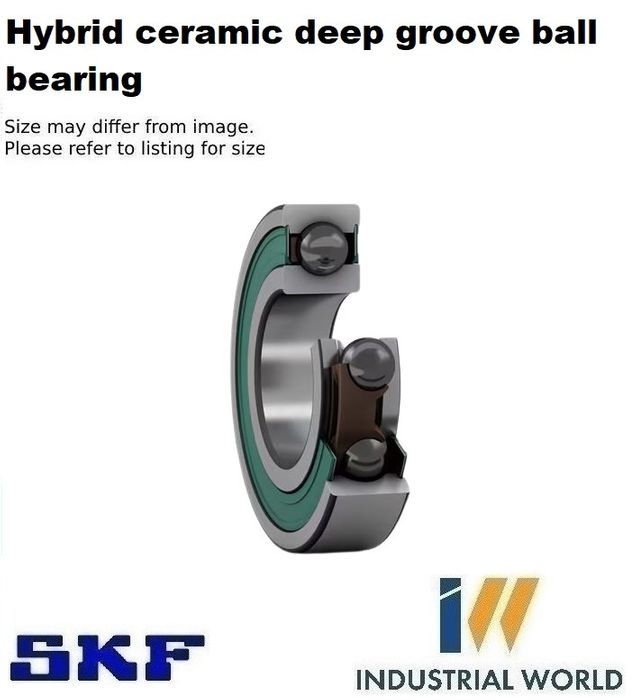

Hybrid ceramic deep groove ball bearing with seals on both sides

Hybrid single row deep groove ball bearings with seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

  • Protected against electric current damage
  • Integral sealing prolongs bearing service life
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings

Dimensions

Bore diameter40 mm
Outside diameter68 mm
Width15 mm

Performance

Basic dynamic load rating16.8 kN
Basic static load rating11 kN
Reference speed24 000 r/min
Limiting speed13 000 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageNon-metallic
Matched arrangementNo
Radial internal clearanceC3
Tolerance classNormal
Material, bearingHybrid
CoatingWithout
SealingSeal on both sides
Sealing typeNon-contact
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight0.177 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for product information

View product table

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Chrome steel
  • Width:
    15 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2RZ - Non Contact Seal - Both Sides
  • Diameter Outside:
    68 mm
  • Style:
    High Temperature
