SKF AGRI HUB UNIT 4 x Threaded holes M12 x 1.25

98MM PCD Stub Axle M22 x1.5
Stock Code:
BAA-0004_SKF
$148.50 incl GST

Stock Locations

  • Ballarat:
    988 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

BAA-0004

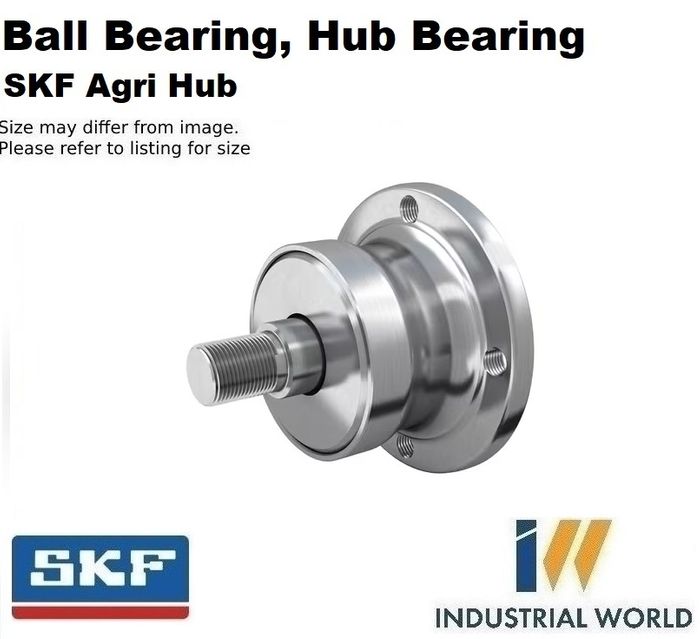

Ball bearing, hub bearing unit, SKF Agri Hub

SKF Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, SKF Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.

  • Easy and quick to mount and remove
  • Maintenance-free
  • Greased for life
  • Improved machine reliability

Dimensions

Shaft diameter28 mm
Width, total60 mm
Thread designationM22x1.5

Performance

Basic dynamic load rating47.5 kN
Basic static load rating37.5 kN

Properties

ApplicationFor individual tillage disc application
StandardNot standardized
Attachment thread diameterM12x1.25
Number of bolt holes for fasteners4
Fastening bolt hole typeThreaded
Bore typeShaft with thread
Material, bearingBearing steel
SealingWith
Sealing typeSKF Mudblock seal
LubricantGrease

Logistics

Product net weight2.2 kg
eClass code23-05-16-90
UNSPSC code31171503

Click here for catalogue information

View Agri Hub Product Range

Product Guide Attached
