SKF - 10B1/50/50H (5/8) SPROCKET 16 TEETH 1 ROW

SINGLE ROW - 1610 TAPERLOCK (PHS 10B-1TBH16)
Stock Code:
SPR-10B1-16-TL_SKF
$27.06 incl GST

Stock Locations

  • Ballarat:
    10 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHS 10B-1TBH16

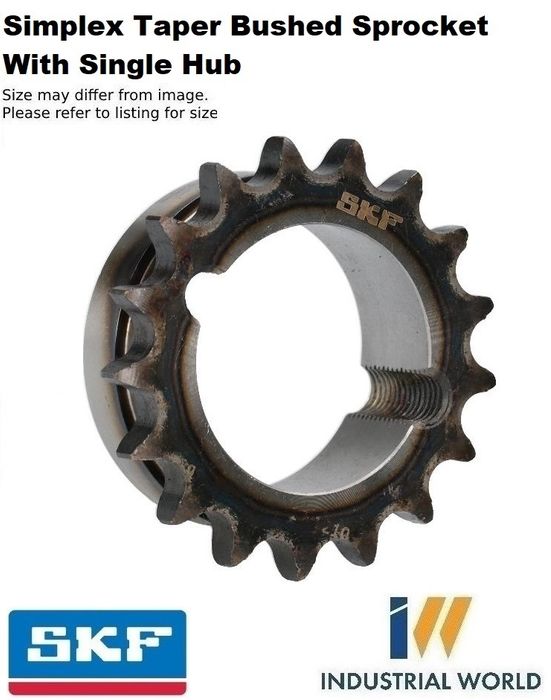

Simplex taper bushed sprocket with single hub, European standards (EN)

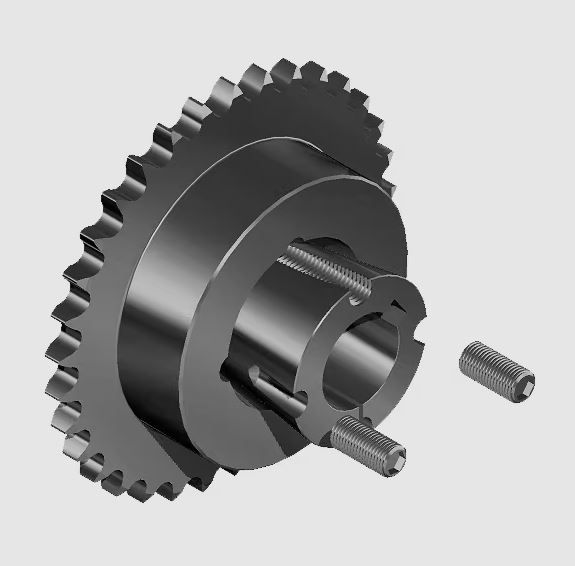

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a taper bush and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

Dimensions

Bore max42 mm
Bore min14 mm
Hub diameter71 mm
Pitch15.88 mm
Pitch diameter81.37 mm
Width, total25 mm

Properties

Bushing number1610
MaterialSteel
Number of teeth16
Sprocket typeB
StandardBS

Logistics

Product net weight0.295 kg
eClass code23-17-04-50
UNSPSC code31171901

Click here for product information

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Taperlock
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Taperlock Size:
    1610
  • Number of Rows:
    1 Row
  • Pitch:
    5/8 Inch
  • Chain Series:
    BRITISH / ANSI
  • Type:
    TAPERLOCK BUSH SPROCKET
  • Size:
    16
  • Chain Size:
    10B1 / 50 / 50H (SINGLE ROW)
