SKF AGRI HUB UNIT - 4 x Threaded Holes M12

98MM PCD BEARING - BORE = 30MM with Labyrinth ring
Stock Code:
BAA-0003_SKF
$135.50 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

BAA 0003

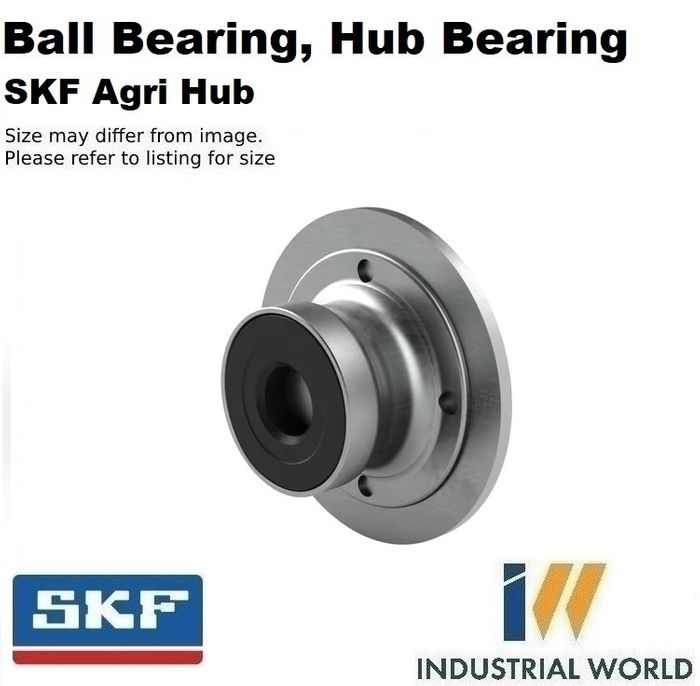

Ball bearing, hub bearing unit, SKF Agri Hub

SKF Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, SKF Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.

  • Easy and quick to mount and remove
  • Maintenance-free
  • Greased for life
  • Improved machine reliability

Dimensions

Shaft diameter30 mm

Performance

Basic dynamic load rating47.5 kN
Basic static load rating37.5 kN

Properties

ApplicationFor individual tillage disc application
StandardNot standardized
Attachment thread diameterM12x1.25
Number of bolt holes for fasteners4
Fastening bolt hole typeThreaded
Bore typeCylindrical
Material, bearingBearing steel
SealingWithout
LubricantGrease

Logistics

Product net weight1.71 kg
eClass code23-05-16-90
UNSPSC code31171503

Click here for catalogue information

View Agri Hub Product Range

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
