SKF - D/Row Angular Contact Bearing

60 x 130 x 54 Metal Cage 3312 A
Stock Code:
3312-A_SKF
$294.89 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

3312 A

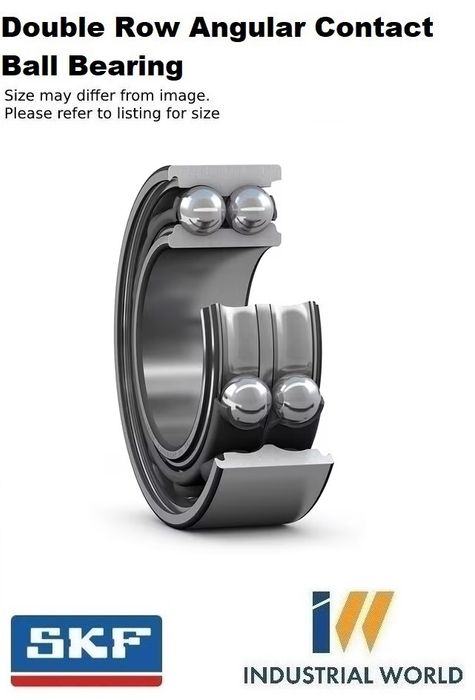

Double row angular contact ball bearing

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings.

Dimensions

Bore diameter60 mm
Outside diameter130 mm
Width54 mm
Contact angle30 °

Performance

Basic dynamic load rating127 kN
Basic static load rating95 kN
Reference speed5 600 r/min
Limiting speed5 000 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageSheet metal
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight2.93 kg
eClass code23-05-08-03
UNSPSC code31171531

Click here for catalogue information

View product table

Calculate rating life, frequencies etc.

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    60 mm
  • Material:
    Chrome Steel
  • Width:
    54 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Diameter Outside:
    130 mm
