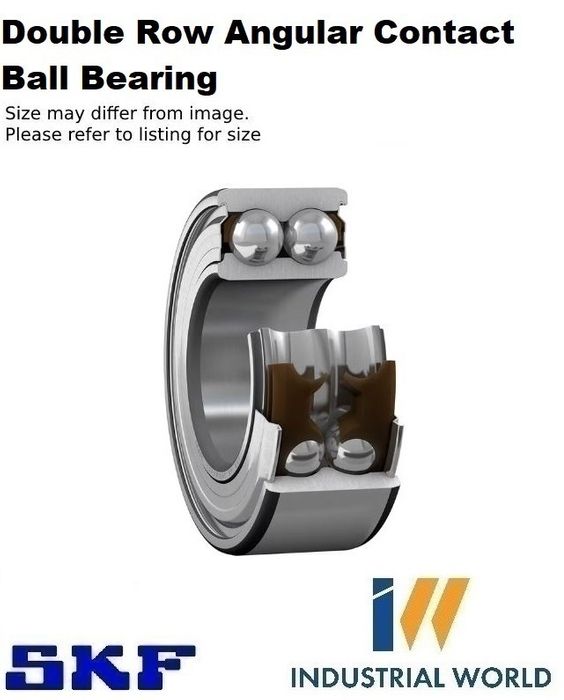

SKF - Double Row Angular Contact Ball Bearing

30 X 62 X 23.8 Polyamide Cage 3206 A-2ZTN9/MT33
Stock Code:
3206-A-TN9-2Z_SKF
$62.65 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

3206 A-2ZTN9/MT33
Double row angular contact ball bearing with seals or shields

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

Dimensions

Bore diameter30 mm
Outside diameter62 mm
Width23.8 mm
Contact angle30 °

Performance

Basic dynamic load rating30.5 kN
Basic static load rating22 kN
Reference speed10 000 r/min
Limiting speed10 000 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageNon-metallic
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingShield on both sides
Sealing typeNon-contact
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight0.292 kg
eClass code23-05-08-03
UNSPSC code31171531

Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Chrome Steel
  • Width:
    23.8 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Standard
  • Size:
    3206
  • Diameter Outside:
    62 mm
  • Style:
    Polyamide Cage
