SKF INSOCOAT - Insulated Deep Groove Ball Bearing

60 X 130 X 31 (6312 M/C3VL0241)
Stock Code:
6312-M-C3-VL0241_SKF
$1,857.32 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6312 M/C3VL0241

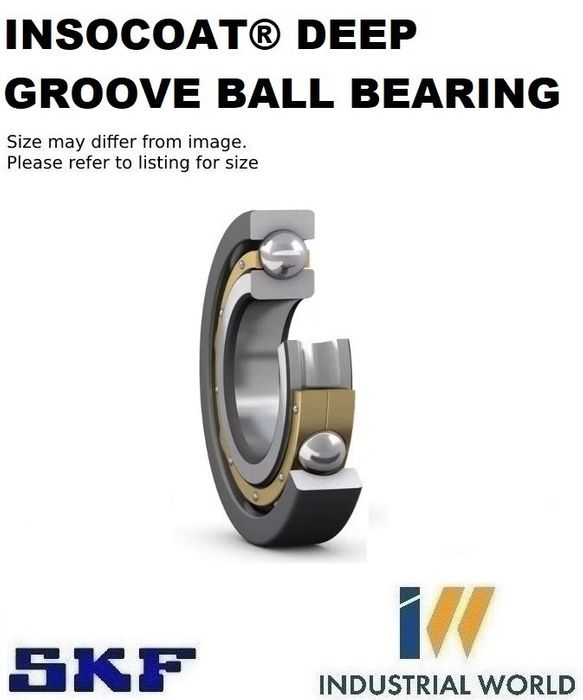

INSOCOAT® deep groove ball bearing

INSOCOAT single row deep groove ball bearings feature an electrically insulating coating on the outside surfaces of either the inner or outer bearing ring. This keeps stray electric currents from passing through the bearings, protecting them against electrical erosion damage and helping prevent lubricant degradation resulting from electric current discharge. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Coating protects against electrical erosion damage
  • Reduced lubricant degradation resulting from electric current discharge
  • Typical benefits of single row deep groove ball bearings.

Dimensions

Bore diameter60 mm
Outside diameter130 mm
Width31 mm

Performance

Basic dynamic load rating85.2 kN
Basic static load rating52 kN
Reference speed11 000 r/min
Limiting speed10 000 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageMachined metal
Matched arrangementNo
Radial internal clearanceC3
Material, bearingBearing steel
CoatingInsulation coating on outer ring
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight1.9 kg
eClass code23-05-09-01
UNSPSC code31171537

Click here for catalogue information

View product table


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    60 mm
  • Material:
    Chrome steel
  • Width:
    31 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Open
  • Diameter Outside:
    130 mm
  • Style:
    Insocoat (Electrical Insulated)
