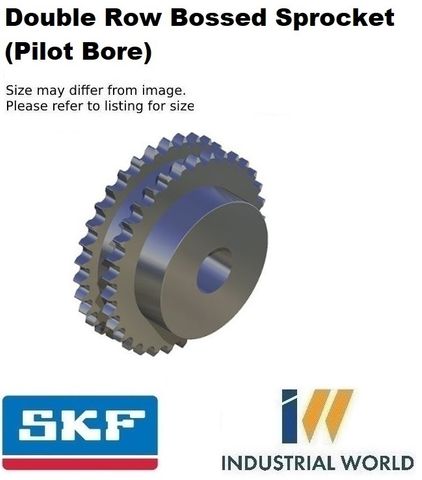

SKF - 16B2 (1 Inch) SPROCKET 24 TEETH 2 ROW

DOUBLE ROW - BOSSED - PILOT (PHS 16B-2BH24)
Stock Code:
SPR-16B2-24-PB_SKF
$248.38 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHS 16B-2BH24

Duplex sprocket with single hub and rough stock bore, European standards (EN)

Sprockets are available in many sizes, to fit a variety of design solutions. These duplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

Dimensions

Bore max85 mm
Bore min25 mm
Hub diameter130 mm
Pitch25.4 mm
Pitch diameter194.59 mm
Width, total70 mm

Properties

MaterialSteel
Number of teeth24
Sprocket typeB
StandardBS

Logistics

Product net weight11.5 kg
eClass code23-17-04-50
UNSPSC code31171901


Click here for catalogue information

Click here for sprocket information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Number of Rows:
    2 Row
  • Pitch:
    1 Inch
  • Chain Series:
    BRITISH
  • Type:
    PILOT BORE SPROCKET
  • Size:
    24
  • Chain Size:
    16B2 (DOUBLE ROW)
