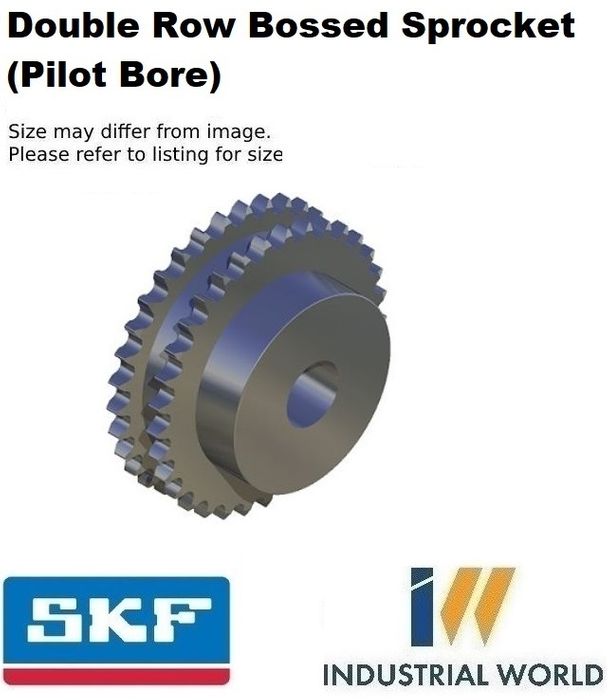

SKF - 16B2 (1 Inch) SPROCKET 27 TEETH 2 ROW

DOUBLE ROW - BOSSED - PILOT (PHS 16B-2BH27)
Stock Code:
SPR-16B2-27-PB_SKF
$303.16 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-16B2-27-PB SKF

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel
Pitch P (mm)25.4
Pitch P (in)1
No. of teeth27
Pitch diameter (mm)218.79
Pitch diameter (in)8.61
Min. bore (mm)25
Min. bore (in)0.98
Max. bore (mm)75
Max. bore (in)2.95
Hub H (mm)130
Hub H (in)5.12
Hub L (mm)70
Hub L (in)2.76
Weight (kg)14.48
Weight (lbs)31.92

Click here for sprocket information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Number of Rows:
    2 Row
  • Pitch:
    1 Inch
  • Chain Series:
    BRITISH
  • Type:
    PILOT BORE SPROCKET
  • Size:
    27
  • Chain Size:
    16B2 (DOUBLE ROW)
