SKF - Deep Groove Ball Bearing

85 x 150 x 28
Stock Code:
6217-C3_SKF
$145.23 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
6 On Order
Make an Enquiry
Add to Favourites

Description

6217/C3

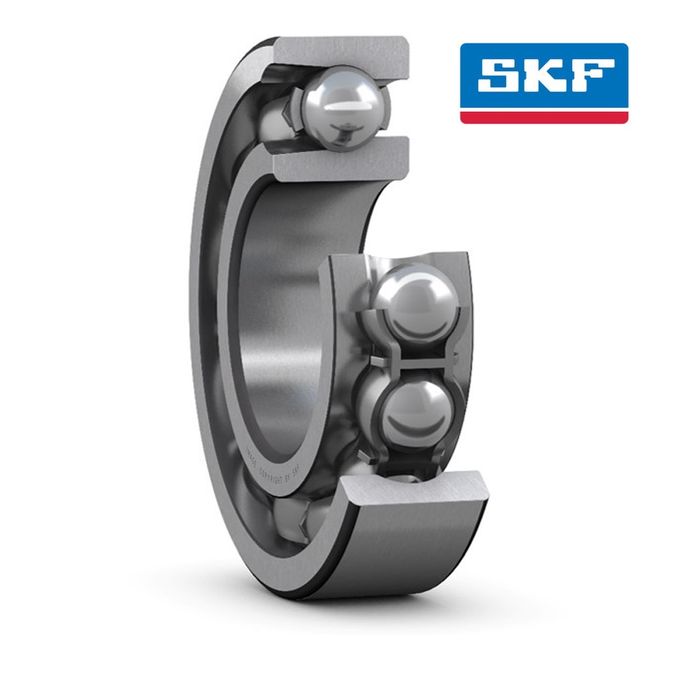

Deep groove ball bearing

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter85 mm
Outside diameter150 mm
Width28 mm

Performance

Basic dynamic load rating87.1 kN
Basic static load rating64 kN
Reference speed9 000 r/min
Limiting speed5 600 r/min
SKF performance classSKF Explorer

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight1.74 kg
eClass code23-05-08-01
UNSPSC code31171504



Click here for catalogue information

View product table



Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    85 mm
  • Material:
    Chrome steel
  • Width:
    28 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Open
  • Diameter Outside:
    150 mm
  • Style:
    Standard
