SKF - UNIT BEARING - GRUB SCREW - STAND SEAL

31.75 X 72 X 33 / 19 (YAT 207-104)
Stock Code:
YAT207-104_SKF
$44.47 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
17 On Order
Make an Enquiry
Add to Favourites

Description

YAT 207-104

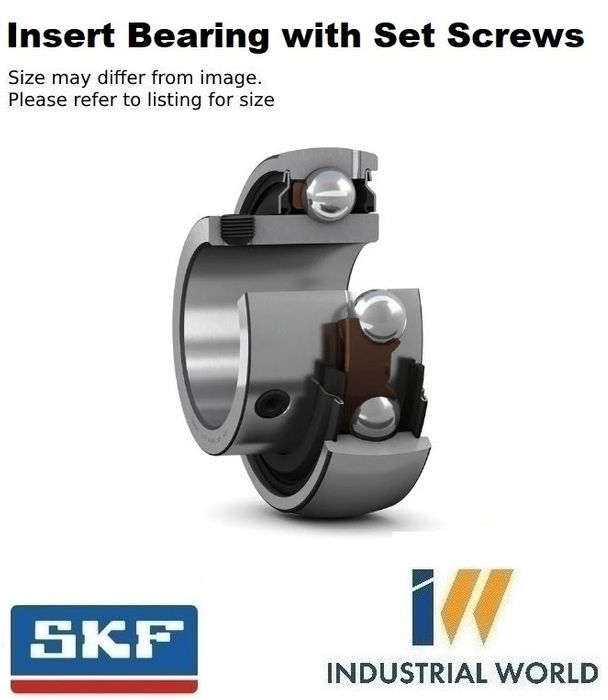

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter31.75 mm
Outside diameter72 mm
Width, total33 mm
Width, inner ring33 mm
Width, outer ring19 mm

Performance

Basic dynamic load rating25.5 kN
Basic static load rating15.3 kN
Limiting speed5 300 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Retaining feature, inner ringSet screws
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionOn one side
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact, standard
LubricantGrease
Relubrication featureWith

Logistics

Product net weight0.422 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    31.75 mm (1-1/4)
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial - Bore
  • Type:
    Single Lip Seal
  • Size:
    207
  • Diameter Outside:
    72 mm
  • Style:
    Standard
