SKF - UNIT BEARING - GRUB SCREW - STAND SEAL

20 X 47 X 25.5 / 14 (YAT 204)
Stock Code:
YAT204_SKF
$31.21 incl GST

Stock Locations

  • Ballarat:
    20 In Stock
  • Shepparton:
    2 In Stock
10 On Order
Make an Enquiry
Add to Favourites

Description

YAT 204

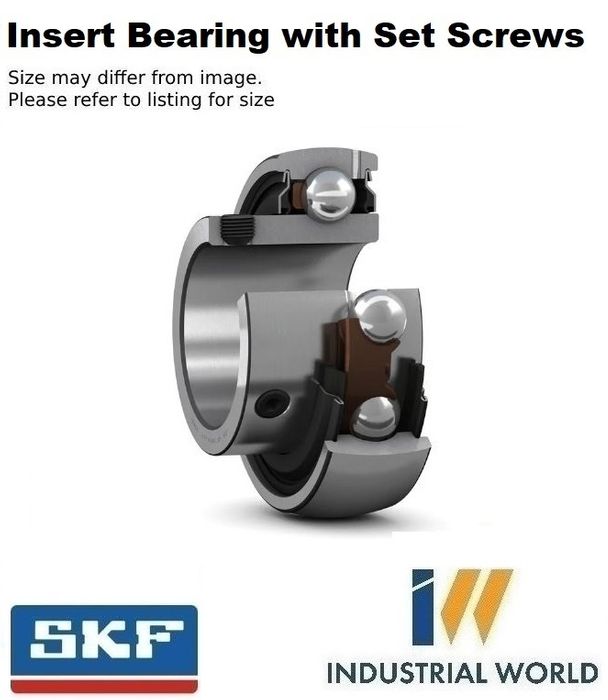

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter20 mm
Outside diameter47 mm
Width, total25.5 mm
Width, inner ring25.5 mm
Width, outer ring14 mm

Performance

Basic dynamic load rating12.7 kN
Basic static load rating6.55 kN
Limiting speed8 500 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Retaining feature, inner ringSet screws
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionOn one side
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact, standard
LubricantGrease
Relubrication featureWith

Logistics

Product net weight0.128 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au



Details

  • Bore Size:
    20 mm
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Single Lip Seal
  • Size:
    204
  • Diameter Outside:
    47 mm
  • Style:
    Standard
