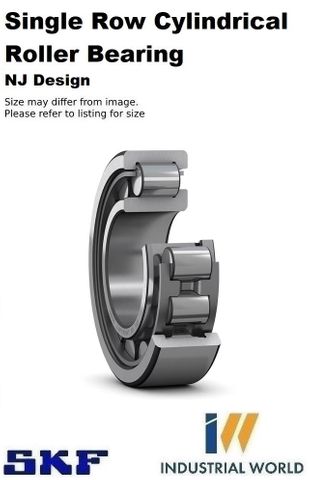

SKF - Cylindrical Roller Bearing Steel Cage

70 x 125 x 24 (NJ 214 ECJ/C4)
Stock Code:
NJ214ECJ-C4_SKF
$215.95 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

NJ 214 ECJ C4
Single row cylindrical roller bearing, NJ design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Dimensions

Bore diameter70 mm
Outside diameter125 mm
Width24 mm

Performance

Basic dynamic load rating137 kN
Basic static load rating137 kN
Reference speed6 000 r/min
Limiting speed6 300 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityIn one direction
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeNone
Radial internal clearanceC4
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight1.18 kg
eClass code23-05-09-01
UNSPSC code31171505


Click here for catalogue information

View Product Table

Product Guide Attached
