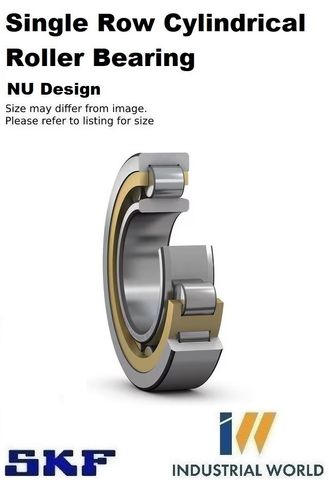

SKF - Cylindrical Roller Bearing Brass Cage

40 x 90 x 33 (NU 2308 ECML/C3)
Stock Code:
NU2308ECML-C3_SKF
$231.69 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NU 2308 ECML/C3
Single row cylindrical roller bearing, NU design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Dimensions

Bore diameter40 mm
Outside diameter90 mm
Width33 mm

Properties

Bearing partComplete bearing
Axial displacement capabilityIn both directions
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageMachined metal
Number of flanges, outer ring2
Number of flanges, inner ring0
Loose flangeNone
Radial internal clearanceC3
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Performance

Basic dynamic load rating129 kN
Basic static load rating120 kN
Reference speed8 000 r/min
Limiting speed15 000 r/min
SKF performance classSKF Explorer


Click here for catalogue information

View Product Table

Product Guide Attached
