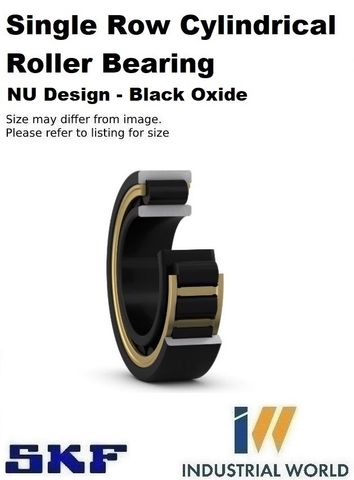

SKF - Cylindrical Roller Bearing Brass Cage

180 x 380 x 126 Oxide Coated (NU 2336 ECML/L4BC3)
Stock Code:
NU2336ECML-L4B-C3_SKF
$14,001.01 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NU 2336 ECML-L4B-C3
Single row cylindrical roller bearing, NU design (With Back Oxide Coating)

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

The black oxide coating of rings and rollers (designation suffix L4B) contributes to
extended service life by improving:
• smearing damage resistance
• running-in properties and reducing
friction
• performance under poor lubrication
conditions
• chemical resistance (from agressive oil
additives)
• corrosion resistance

Typical Applications

  • Wind Turbine GearBox Systems

Dimensions

Bore diameter180 mm
Outside diameter380 mm
Width126 mm

Click here for product table

Click here for black oxide information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    180 mm
  • Material:
    Brass Cage
  • Width:
    126 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Number of Rows:
    Single Row
  • Type:
    NU - Outer 2 flanges - Inner no flanges
  • Size:
    2336
  • Diameter Outside:
    380 mm
  • Style:
    Open
