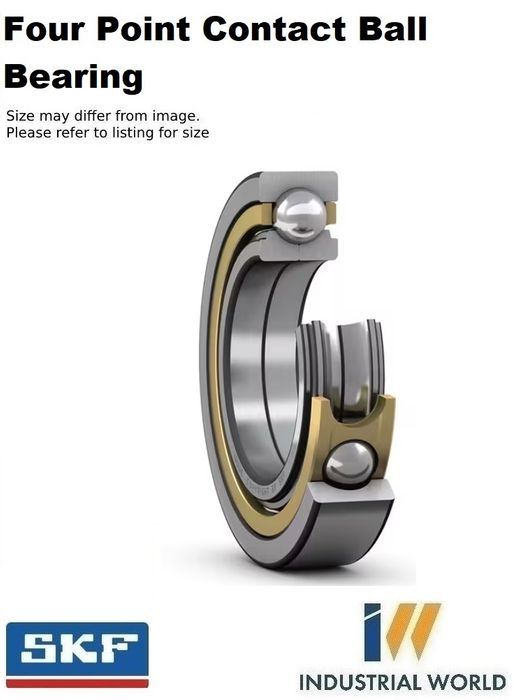

SKF - Four Point Contact Ball Bearing Brass Cage

50 x 110 x 27 (QJ 310 MA)
Stock Code:
QJ310MA_SKF
$243.93 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

QJ 310 MA
Four-point contact ball bearing

Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.

  • High-speed capability
  • Accommodate high axial loads in both directions and small radial loads
  • Require considerably less axial space than double row angular contact ball bearings

Dimensions

Bore diameter50 mm
Outside diameter110 mm
Width27 mm
Contact angle35 °

Performance

Basic dynamic load rating118 kN
Basic static load rating100 kN
Limiting speed11 000 r/min
SKF performance classSKF Explorer

Properties

Contact typeFour-point contact
Number of rows1
Locating feature, bearing outer ringNone
Ring typeTwo-piece inner ring and one-piece outer ring
CageMachined metal
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight1.31 kg
eClass code23-05-08-05
UNSPSC code31171538

Click here for catalogue information

View product table


View product guide
