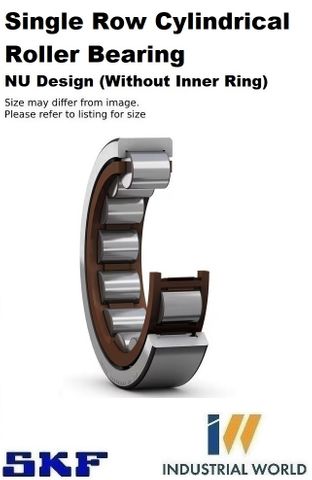

SKF - Cylindrical Roller Bearing Polymer Cage

26.5 x 47 x 14 (RNU 204 ECP)
Stock Code:
RNU204ECP_SKF
$47.80 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

RNU 204 ECP
Single row cylindrical roller bearing, NU design, without inner ring

Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.

  • High radial load carrying capacity
  • Enable a stronger, stiffer shaft
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions

Dimensions

Bore diameter26.5 mm
Outside diameter47 mm
Width14 mm

Performance

Basic dynamic load rating28.5 kN
Basic static load rating22 kN
Reference speed17 000 r/min
Limiting speed19 000 r/min
SKF performance classSKF Explorer

Properties

Bearing partBearing without inner ring
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
Number of flanges, outer ring2
Loose flangeNone
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight0.084 kg
eClass code23-05-09-01
UNSPSC code31171505

Click here for catalogue information

View product table

Product Guide Attached
