SKF - Cylindrical Roller Bearing Full Complement

65 x 140 x 48 (NJG 2313 VH/C3)
Stock Code:
NJG2313VH-C3_SKF
$1,012.76 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NJG 2313 VH C3

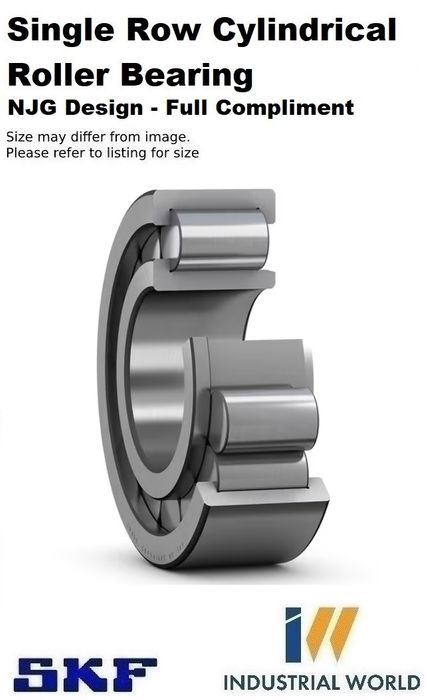

Single row full complement cylindrical roller bearing, NJG design

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the outer ring and one on the inner ring, NJG design bearings can accommodate axial displacement in one direction. A self-retaining roller complement enables the bearing components to be separated, which facilitates mounting and enables the bearing components to be interchanged.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Dimensions

Bore diameter65 mm
Outside diameter140 mm
Width48 mm

Performance

Basic dynamic load rating303 kN
Basic static load rating360 kN
Reference speed1 900 r/min
Limiting speed2 400 r/min

Properties

Bearing partComplete bearing
Axial displacement capabilityIn one direction
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageWithout
DesignSeparable
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeNone
Radial internal clearanceC3
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight3.56 kg
eClass code23-05-09-01
UNSPSC code31171505

Click here for catalogue information

View Product Table

Product Guide Attached
