SKF - Cylindrical Roller Bearing Polymer Cage

40 x 80 x 23 (NUP 2208 ECP)
Stock Code:
NUP2208ECP_SKF
$101.23 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NUP 2208 ECP

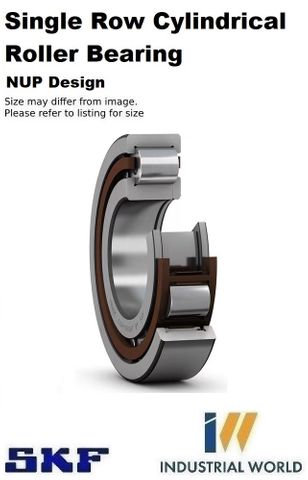

Single row cylindrical roller bearing, NUP design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in both directions
  • Separable design

Dimensions

Bore diameter40 mm
Outside diameter80 mm
Width23 mm

Performance

Basic dynamic load rating81.5 kN
Basic static load rating75 kN
Reference speed9 500 r/min
Limiting speed11 000 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityNone
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageNon-metallic
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeInner ring loose flange
Radial internal clearanceCN
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight0.512 kg
eClass code23-05-09-01
UNSPSC code31171505

Click here for catalogue information

View product table

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Polymer Cage
  • Width:
    23 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Number of Rows:
    Single Row
  • Type:
    NUP - Outer 2 flanges - Inner 2 flanges
  • Size:
    2208
  • Diameter Outside:
    80 mm
  • Style:
    Open
