SKF - Angular Contact Bearing Brass Cage

140 x 250 x 42 Universal Matching (7228 BCBM)
Stock Code:
7228BCBM_SKF
$1,230.65 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

7228 BCBM

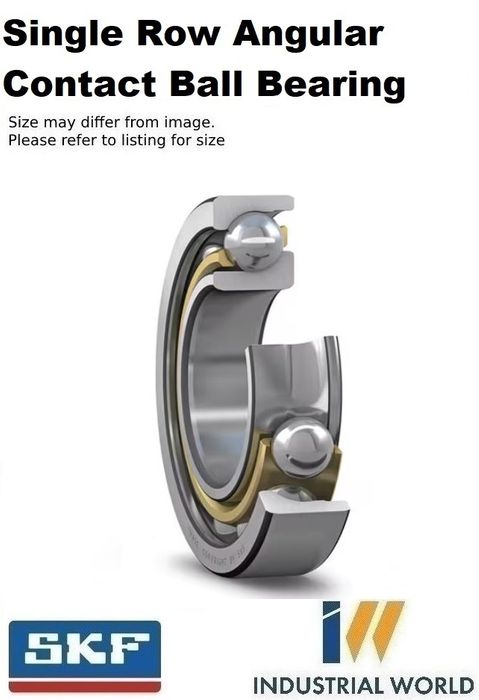

Single row angular contact ball bearing

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Dimensions

Bore diameter140 mm
Outside diameter250 mm
Width42 mm
Contact angle40 °

Performance

Basic dynamic load rating199 kN
Basic static load rating212 kN
Reference speed3 000 r/min
Limiting speed3 600 r/min

Properties

Contact typeNormal contact (two-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageMachined brass
Matched arrangementNo
Universal matching bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance/ preload)Axial clearance CB
Tolerance classClass P6 (P6)
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight8.63 kg
eClass code23-05-08-03
UNSPSC code31171531

Click here for catalogue information

View product table

View product guide
