SKF - Angular Contact Bearing Brass Cage

85 x 180 x 41 Universal Matching (7317 BECBM)
Stock Code:
7317BECBM_SKF
$789.91 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

7317 BECBM

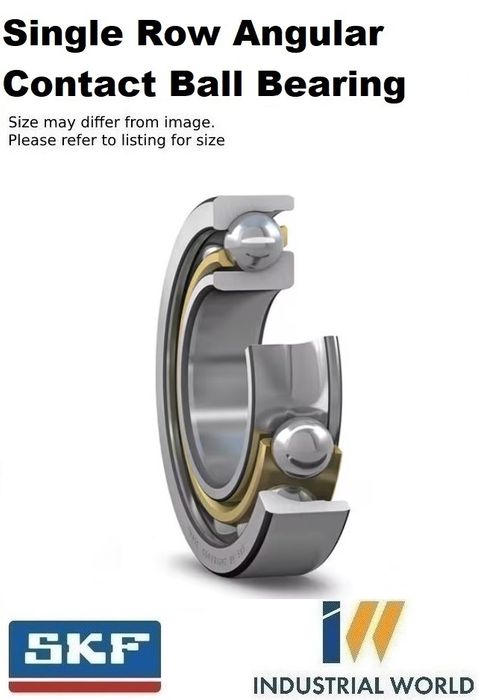

Single row angular contact ball bearing

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Dimensions

Bore diameter85 mm
Outside diameter180 mm
Width41 mm
Contact angle40 °

Performance

Basic dynamic load rating156 kN
Basic static load rating132 kN
Reference speed4 500 r/min
Limiting speed6 000 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageMachined brass
Matched arrangementNo
Universal matching bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance/ preload)Axial clearance CB
Tolerance classClass P6 (P6)
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight4.58 kg
eClass code23-05-08-03
UNSPSC code31171531
