SKF UNIT BEARING - With Collar 3 Lip HS Seal

35 X 72 X 37.6 / 19 (YEL 207-2DW/AG)

Stock Code:

YEL207-2DW/AG_SKF

$88.80 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

13 In Stock

Make an Enquiry

Add to Favourites

Description

YEL 207-2DW/AG

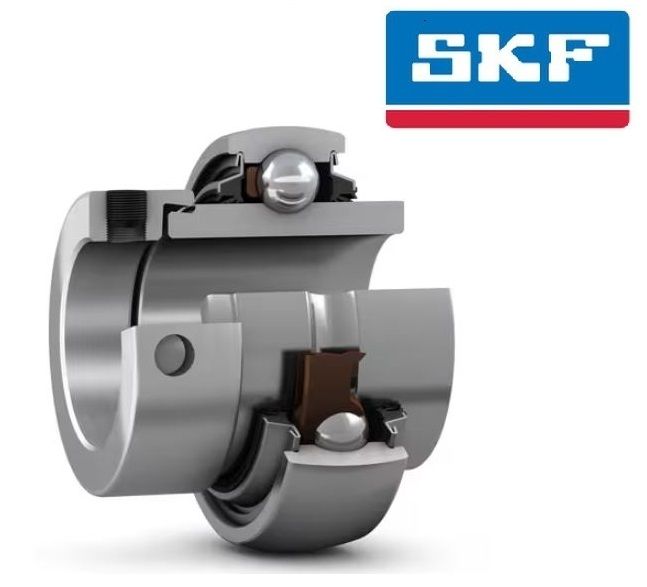

Insert bearing with an eccentric locking collar and extended inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Dimensions

Bore diameter	35 mm
Outside diameter	72 mm
Width, total	51.1 mm
Width, inner ring	37.6 mm
Width, outer ring	19 mm

Performance

Basic dynamic load rating	25.5 kN
Basic static load rating	15.3 kN
Limiting speed	1 100 r/min
Note	Limiting speed with shaft tolerance h6

Properties

Retaining feature, inner ring	Eccentric collar
Bore type	Cylindrical
Rolling elements	Balls
Outer ring type	Spherical
Inner ring extension	On both sides
Cage	Non-metallic
Rubber seating ring	Without
Material, bearing	Bearing steel
Coating	Without
Sealing	Seal on both sides
Sealing type	Contact, 5-lip
Lubricant	Grease
Relubrication feature	Without
