SKF - Spherical Roller Bearing Cylindrical Bore

300 x 500 x 160 (23160-2CS5/VT143)
Stock Code:
23160-2CS5-VT143_SKF
$8,486.91 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

23160-2CS5/VT143

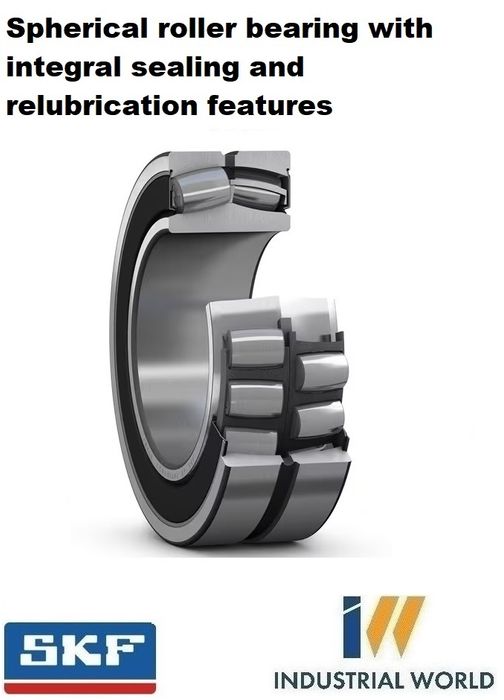

Spherical roller bearing with integral sealing and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter300 mm
Outside diameter500 mm
Width160 mm

Performance

Basic dynamic load rating3 373 kN
Basic static load rating5 100 kN
Limiting speed280 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight126 kg
eClass code23-05-09-11
UNSPSC code31171510

Click here for catalogue information

View product table

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    300 mm
  • Material:
    Chrome Steel
  • Width:
    160 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    23160
  • Diameter Outside:
    500 mm
