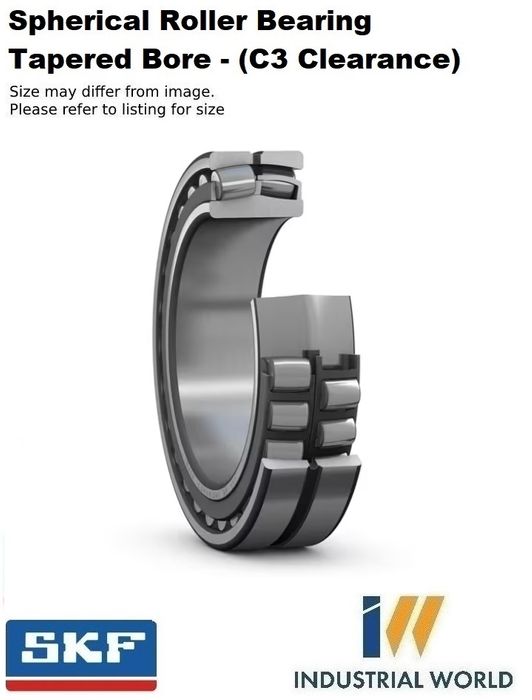

SKF - Spherical Roller Bearing Tapered Bore

170 x 260 x 67 (23034 CCK/C3W33)
Stock Code:
23034CCK-W33-C3_SKF
$1,011.74 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

23034 CCK/C3W33
Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter170 mm
Outside diameter260 mm
Width67 mm

Performance

Basic dynamic load rating745 kN
Basic static load rating1 060 kN
Reference speed2 200 r/min
Limiting speed2 800 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceC3
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight12.2 kg
eClass code23-05-09-11
UNSPSC code31171510

Click here for Product Information

View product table

Calculate rating life, frequencies

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    170 mm
  • Material:
    Chrome Steel
  • Width:
    67 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Taper Bore (K)
  • Size:
    23034
  • Diameter Outside:
    260 mm
