SKF - WEDGE BELT

Stock Code:
8V2000_SKF
$161.26 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
10 On Order
Make an Enquiry
Add to Favourites

Description

PHG 8V2000

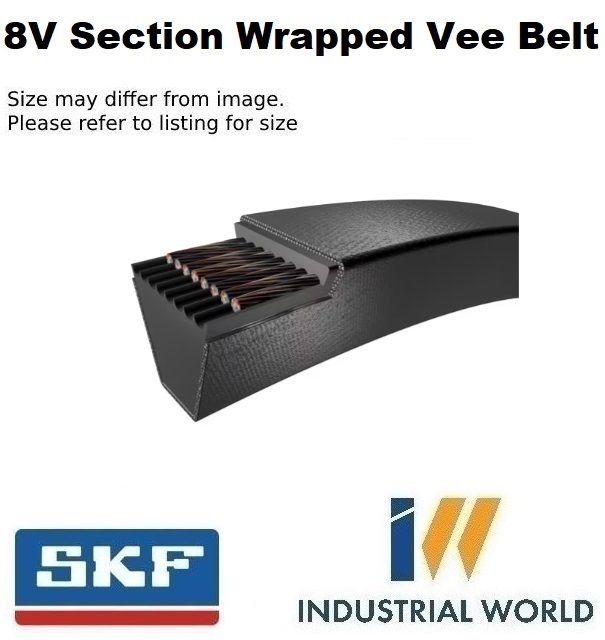

Wrapped narrow wedge belt

Belts provide a very efficient and cost-effective method for transmitting power from prime movers to driven machines. Narrow wedge belts have pre-tensioned polyester cords that provide low stretch during operation and a fibre-loaded rubber cushion that provides good transverse rigidity. Being fully covered in a heavy duty industrial fabric, wrapped belts have a high resistance against abrasion.

  • High transverse rigidity, which minimizes heat generation
  • Low elongation during operation
  • Oil and heat resistant, with anti-static properties
  • Fully wrapped to resist abrasion
  • Reduced energy consumption and increased mean time between failures

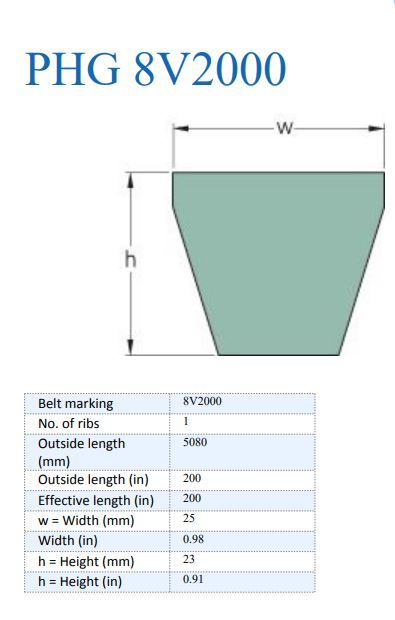

Dimensions

Belt marking8V2000
No. of ribs1
Outside length (mm)5080
Outside length (in)200
Effective length (in)200
w = Width (mm)25
Width (in)0.98
h = Height (mm)23
h = Height (in)0.91

Properties

CoggedNo
MaterialCR (polychloroprene)
Section8V
Tensile cordPolyester
Wrapped CoverYes

Logistics

Product net weight2.73 kg
eClass code23-17-02-90
UNSPSC code26111504

Click here for catalogue information

Click here for belt information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
  • Number of Rows:
    1
  • Size:
    2000
  • Belt Type:
    8V (25MM)
  • Style:
    Standard
