SKF - Keyless Locking Bush - Not Self Centering

35 x 60 x 20/27.5 (PHF FX10-35X60)
Stock Code:
FX10-35X60_SKF
$47.85 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
20 On Order
Make an Enquiry
Add to Favourites

Description

PHF FX10-35X60

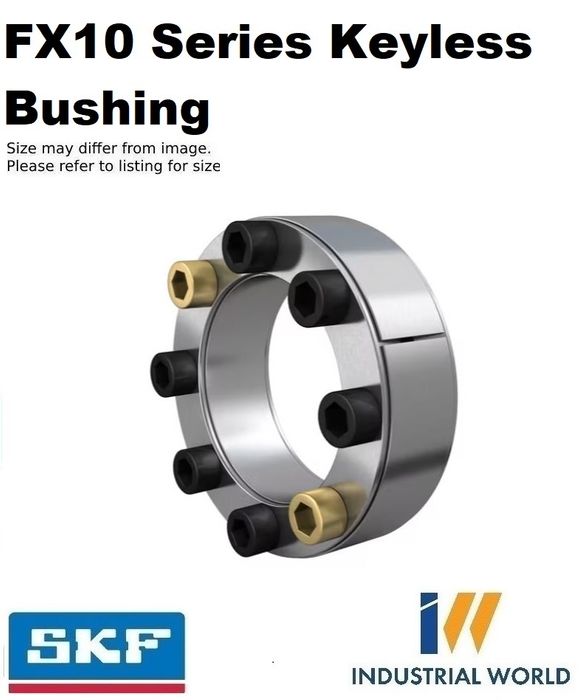

FX keyless bushing, FX10

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX10 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.

  • Manufactured according to established market standards
  • Available in a wide range of metric and imperial bore sizes
  • Easily installed and removed using basic tools
  • True zero backlash
  • Reduced machining and material costs

Dimensions

Bore diameter35 mm
Contact width17 mm
Element width20 mm
Outside diameter60 mm
Width, total27.5 mm

Properties

Bushing numberFX10
Number of clamp screws12

Logistics

Product net weight0.3 kg
eClass code23-05-19-01
UNSPSC code31171605

Click here for catalogue information

View product table

Product Guide Attached.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    35 mm
  • Thread Size:
    M6
  • Width:
    20 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    FX10 non self-centering
  • Diameter Outside:
    60 mm
  • Style:
    TLK200 - Z2 - REACH01
  • Length:
    27.5 mm
