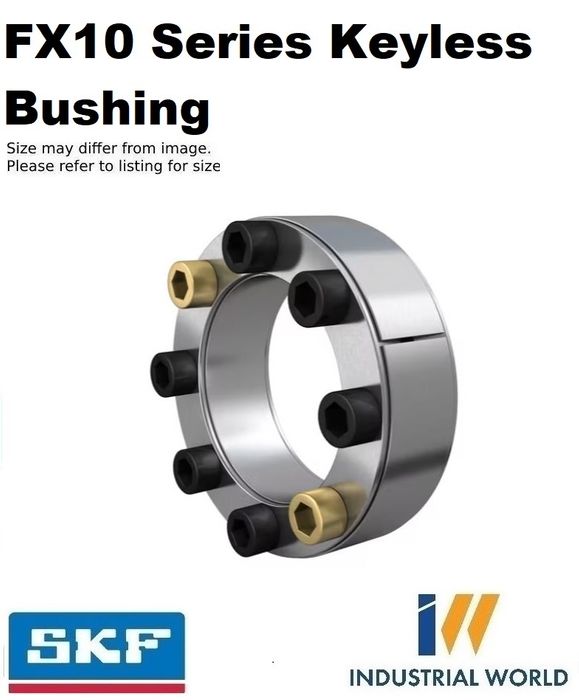

SKF - Keyless Locking Bush - Not Self Centering

320 x 405 x 78/100.5 (PHF FX10-320X405)
Stock Code:
FX10-320X405_SKF
$2,165.69 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FX10-320X405

FX keyless bushing, FX10

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX10 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.

  • Manufactured according to established market standards
  • Available in a wide range of metric and imperial bore sizes
  • Easily installed and removed using basic tools
  • True zero backlash
  • Reduced machining and material costs

Dimensions

Bore diameter320 mm
Contact width72 mm
Element width78 mm
Outside diameter405 mm
Width, total100.50 mm

Properties

Bushing numberFX10
Number of clamp screws14

Logistics

Product net weight30 kg
eClass code23-05-19-01
UNSPSC code31171605




Click here for catalogue information

View product table

Product Guide Attached.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    320 mm
  • Thread Size:
    M20
  • Width:
    78 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    FX10 non self-centering
  • Diameter Outside:
    405 mm
  • Style:
    TLK200 - Z2 - REACH01
  • Length:
    100.5 mm
