SKF - Keyless Locking Bush - Self Centering

35 x 60 x 22/34 (PHF FX51-35X60)
Stock Code:
FX51-35X60_SKF
$39.07 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
10 On Order
Make an Enquiry
Add to Favourites

Description

PHF FX51-35X60

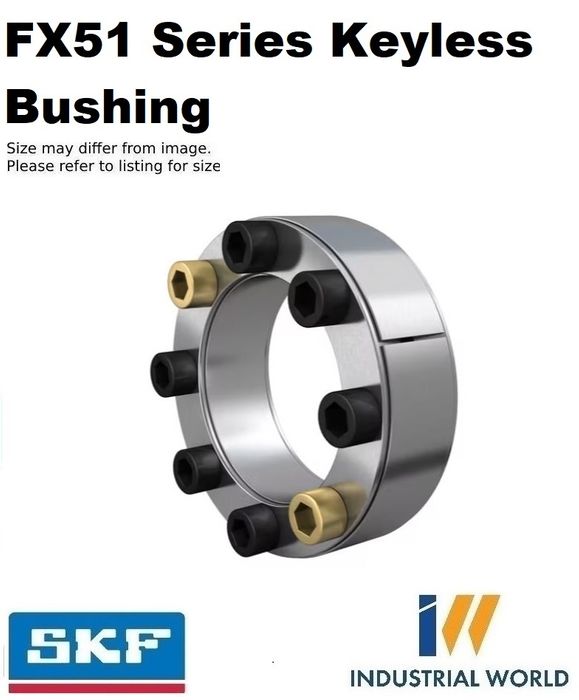

FX keyless bushing, FX51

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX51 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.

  • Manufactured according to established market standards
  • Available in a wide range of metric and imperial bore sizes
  • Easily installed and removed using basic tools
  • True zero backlash
  • Reduced machining and material costs

Dimensions

Bore diameter35 mm
Element width28 mm
Outside diameter60 mm
Width, total34 mm

Properties

Bushing numberFX51
Number of clamp screws8

Logistics

Product net weight0.4 kg
eClass code23-05-19-01
UNSPSC code31171605

Click here for catalogue information

View product table

Product Guide Attached.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    35 mm
  • Thread Size:
    M6
  • Width:
    22 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    FX51 - self-centering
  • Diameter Outside:
    60 mm
  • Style:
    TLK133 - REACH07
  • Length:
    34 mm
