SKF - Keyless Locking Bush - Self Centering

90 x 130 x 78/88 (PHF FX60-90X130)
Stock Code:
FX60-90X130_SKF
$291.13 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
6 On Order
Make an Enquiry
Add to Favourites

Description

PHF FX60-90X130

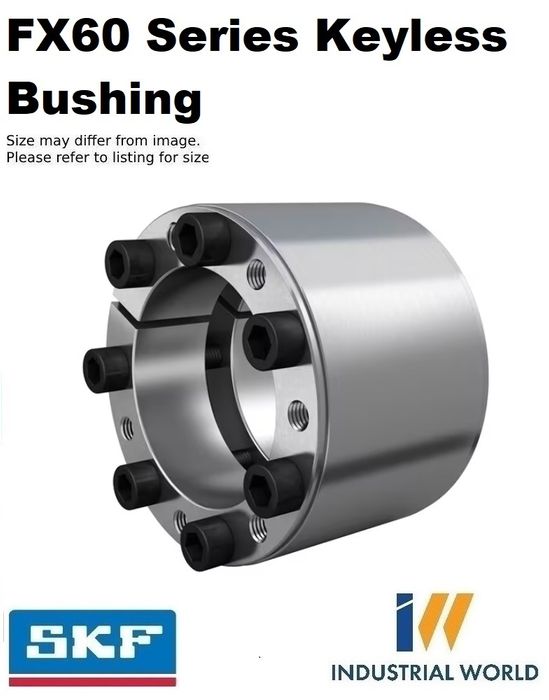

FX keyless bushing, FX60

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX60 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.

  • Manufactured according to established market standards
  • Available in a wide range of metric and imperial bore sizes
  • Easily installed and removed using basic tools
  • True zero backlash
  • Reduced machining and material costs

Dimensions

Bore diameter90 mm
Contact width mm
Element width mm
Outside diameter130 mm
Width, total mm

Properties

Bushing numberFX60
Number of clamp screws12

Logistics

Product net weight3.8 kg
eClass code23-05-19-01
UNSPSC code31171605




Click here for catalogue information

View product table

Product Guide Attached.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    90 mm
  • Thread Size:
    M10
  • Width:
    78 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    FX60 - self-centering - high torque
  • Diameter Outside:
    130 mm
  • Style:
    TLK450 - Z6 - REACH19
  • Length:
    88 mm
