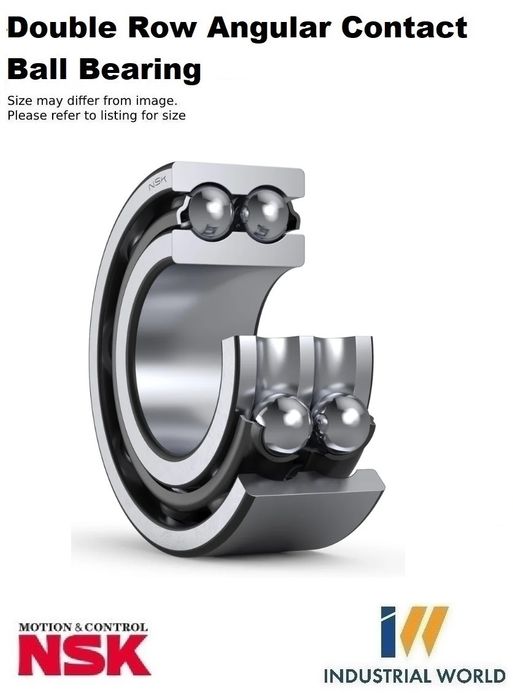

NSK - Double Row Angular Contact Ball Bearing

20 X 47 X 20.6 Polyamide Cage 3204A-2RS1TN9/MT33

Stock Code:

3204-B-TNG-2RSR_NSK

$70.95 incl GST

Stock Locations

Ballarat:

15 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

3204-B-TNG-2RSR NSK

Double Row Angular Contact Ball Bearing

20 ID X 47 OD X 20.6 Width mm

NSK's comprehensive range of angular contact ball bearings is designed to meet the ever-evolving requirements of equipment manufacturers.
Angular contact ball bearings feature a contact angle that sustains significant axial loads in one direction at the same time as radial loads.
Since an axial component is generated when radial load is applied, these bearings are typically used in pairs or multi-bearing sets.

Double Row Angular Contact Ball Bearing

A back-to-back paired mounting of single-row angular contact ball bearings is turned into a bearing with a single inner ring and outer ring.
Double-row angular contact ball bearings are often used as fixed-end bearings as they can sustain axial loads in both directions and have the capacity to take moment loads.
These bearings feature pressed steel cages.

Features

Compact design
An integrated back-to-back mounting of two single-row ACBBs in the form factor of a single inner ring and outer ring.
Support axial loads
Double-row ACBBs can take axial (thrust) loads in both directions.
