SKF - Spherical Roller Bearing Tapered Bore

50 x 90 x 23
Stock Code:
22210EK_SKF
$88.75 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

22210 EK

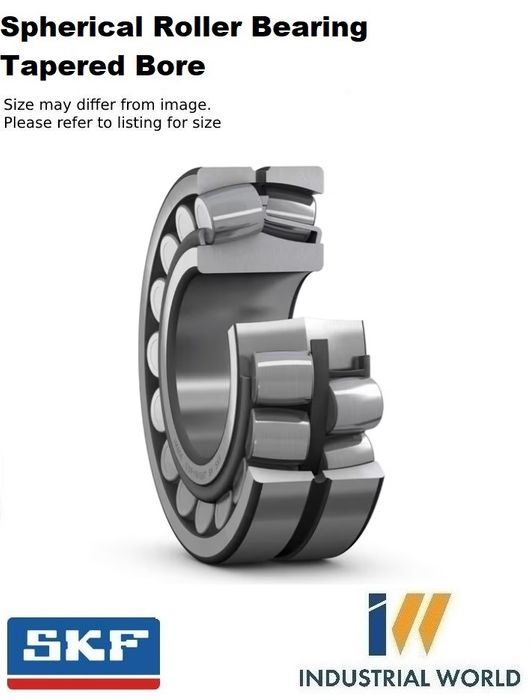

Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter50 mm
Outside diameter90 mm
Width23 mm

Performance

Basic dynamic load rating107 kN
Basic static load rating108 kN
Reference speed7 000 r/min
Limiting speed9 500 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith

Logistics

Product net weight0.603 kg
eClass code23-05-09-11
UNSPSC code31171510

Click here for catalogue information

View product table


Product guide attached

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50 mm
  • Material:
    Chrome Steel
  • Width:
    23 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Taper Bore (K)
  • Size:
    22210
  • Diameter Outside:
    90 mm
