SKF - Deep Groove Ball Bearing

90 x 140 x 24
Stock Code:
6018-2Z-C3_SKF
$169.59 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
6 On Order
Make an Enquiry
Add to Favourites

Description

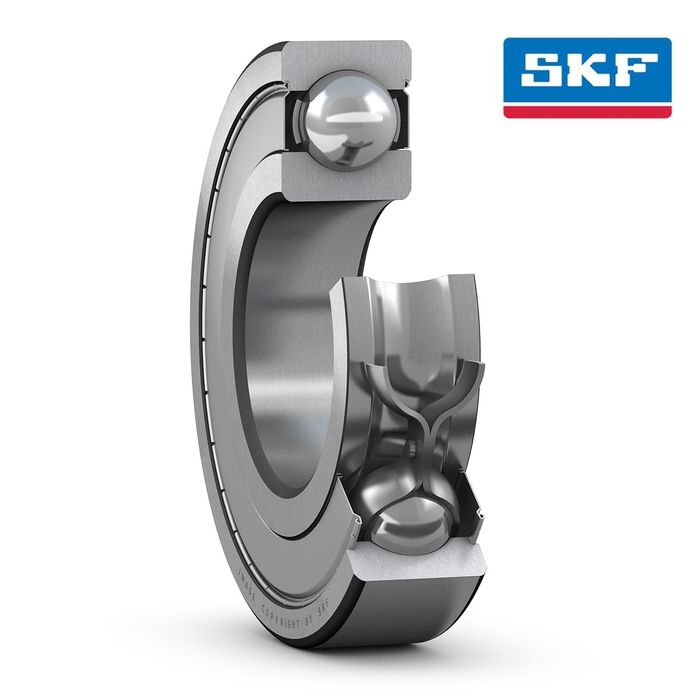

6018-2Z/C3
Deep groove ball bearing with seals or shields

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Dimensions

Bore diameter90 mm
Outside diameter140 mm
Width24 mm

Performance

Basic dynamic load rating60.5 kN
Basic static load rating50 kN
Reference speed10 000 r/min
Limiting speed5 000 r/min
SKF performance classSKF Explorer

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingShield on both sides
Sealing typeNon-contact
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight1.19 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for catalogue information

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    90 mm
  • Material:
    Chrome steel
  • Width:
    24 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2Z (ZZ) Metal Shield - Both Sides
  • Diameter Outside:
    140 mm
  • Style:
    Standard
