ITM - Drill Holemaker Uni ShankGold Series Cutter

39mm x 25mm
Stock Code:
AT3925
$253.70 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

AT3925

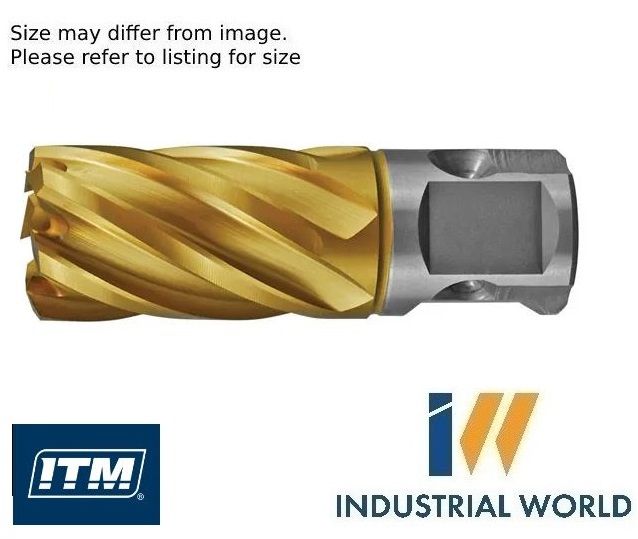

HOLEMAKER UNI SHANK GOLD SERIES CUTTER 39MM X 25MM

TITANIUM NITRIDE COATING.
The Titanium Nitride coating significantly increases the tool life by providing the following benefits:.
- Increased surface hardness to 85HRC.
- Ceramic surface, reducing friction by up to 30%.
- Especially resistant to cold welding.
- Suitable for cutting a wide range of materials.

M2AL HIGH SPEED STEEL MATERIAL.
M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

STEP HARDENED PROCESS.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.

MULTI-CUT GEOMETRY.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centring.

FULLY GROUND WITH INTERNAL RELIEF.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.

UNIVERSAL SHANK.
19.05mm (3/4) Universal Shank with 2 flat sections to suit most magnetic base drilling machines.

Specifications

  • 39MM X 25MM
  • Diameter: 39mm
  • Depth Of Cut: 25mm
  • Pilot Pin Diameter: 6.34mm
  • Shank Diameter: 3/4"
  • Pilot Pin To Suit - SP16003
