SKF - Cylindrical Roller Bearing Steel Cage

90 x 160 x 30 (NU 218 ECJ)
Stock Code:
NU218ECJ_SKF
$258.08 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
4 On Order
Make an Enquiry
Add to Favourites

Description

NU 218 ECJ

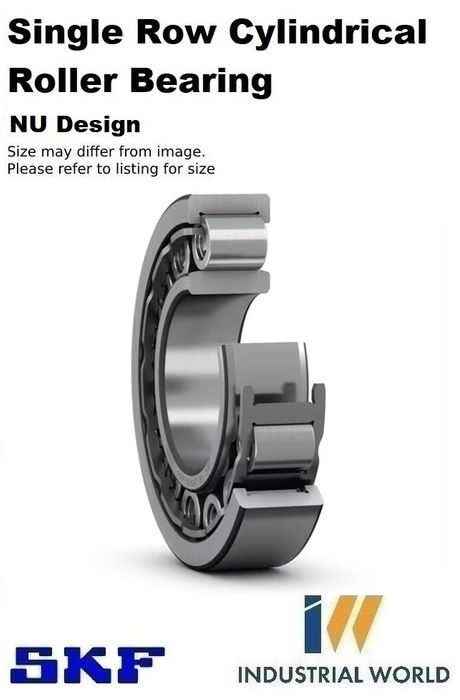

Single row cylindrical roller bearing, NU design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Dimensions

Bore diameter90 mm
Outside diameter160 mm
Width30 mm

Performance

Basic dynamic load rating208 kN
Basic static load rating220 kN
Reference speed4 500 r/min
Limiting speed5 000 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityIn both directions
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Number of flanges, outer ring2
Number of flanges, inner ring0
Loose flangeNone
Radial internal clearanceCN
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight2.31 kg
eClass code23-05-09-01
UNSPSC code31171505

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    90 mm
  • Material:
    Steel Cage
  • Width:
    30 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Number of Rows:
    Single Row
  • Type:
    NU - Outer 2 flanges - Inner no flanges
  • Size:
    218
  • Diameter Outside:
    160 mm
  • Style:
    Open
