Sutton - Jobber Drill Bit - Inox

2mm - DIN338 - HSS TiAlN
Stock Code:
SUT-D1850200
$5.61 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    3 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

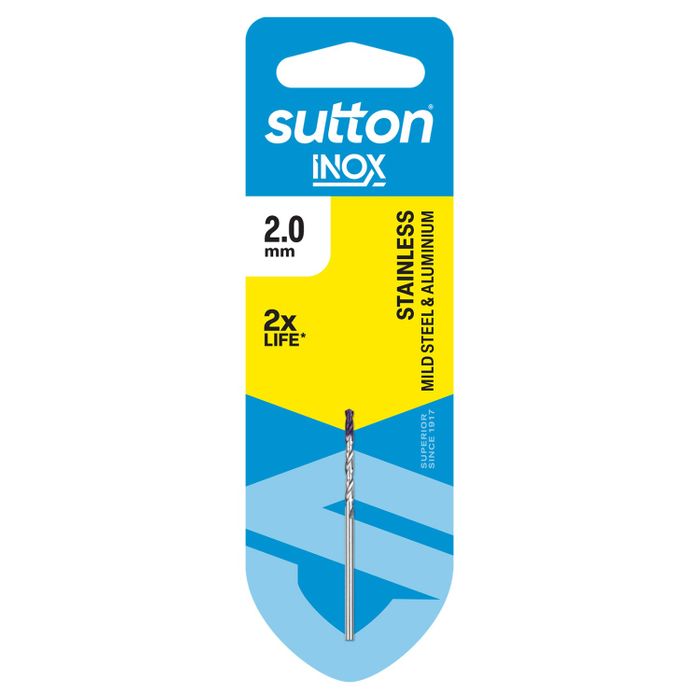

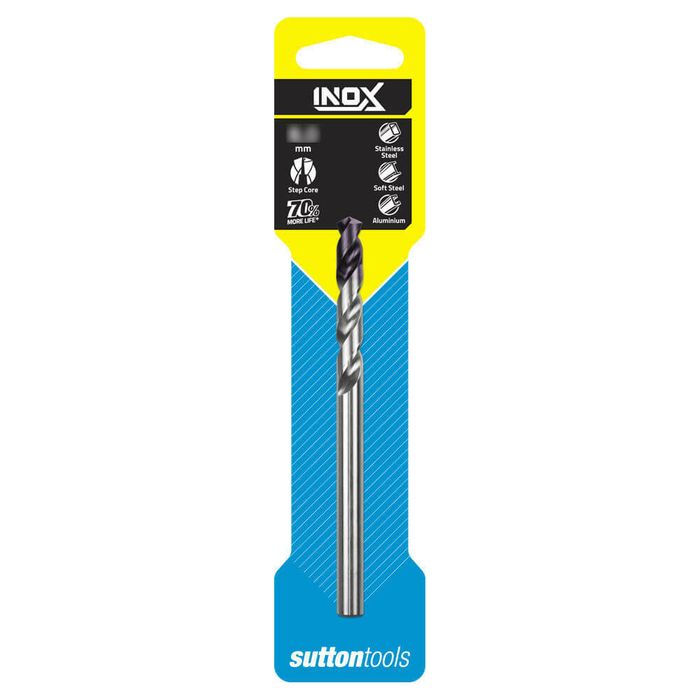

Sutton D1850200 2mm Inox Jobber Drill Bits - DIN338 Carded - HSS TiAlN

Sutton Tools Jobber Drill Bits - Inox

  • Sutton Tools INOX jobber drills are an industrial quality drilling solution specially designed for superior performance in stainless steel
  • Tailored to overcome the difficult-to-machine material properties of stainless steel

Features

  • Specialized design achieves 70% more life in stainless steel than standard drill bits
  • Futura Nano PVD coated tip for ultimate wear resistance
  • Short flute with fast spiral for maximum rigidity & swarf control
  • Unique point and stepped core designed for superb penetration and minimal work hardening
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance

Specifications

  • Designation: VA
  • Material: High Speed Steel
  • Finish: TiAIN
  • Maximum Cut Depth: 3XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB

Specifications

  • Thread Diameter (mm) 2
  • Overall Length (mm) 49
  • Flute Length (mm) 14
  • Group Code D185
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel (HSS)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R40
  • Shank Form A
  • Point Angle 135
  • Point Form A
  • Maximum Cut Depth 3XD
  • Point Tolerance h8
