Sutton - Reduced Shank Drill

28.0mm Reduced Shank 12.5mm HSS
Stock Code:
SUT-D1882800
$173.12 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    2 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

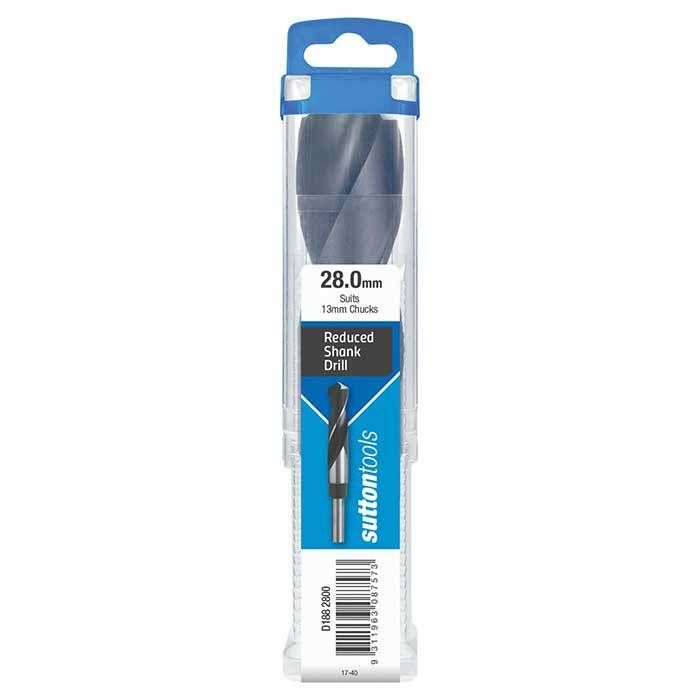

Sutton D1882800 28mm Reduced Shank Drill Bit - 12.5mm Shank - HSS - Blue

Sutton Tools - Reduced Shank Drill Bits

Sutton Tools Reduced Shank Drills are designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large scale boring. Reduced shanks suit 13mm drill chucks. All drills have a 152mm overall length and 86mm flue length.

Features

  • Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
  • Reduced shanks suit 13mm drill chucks

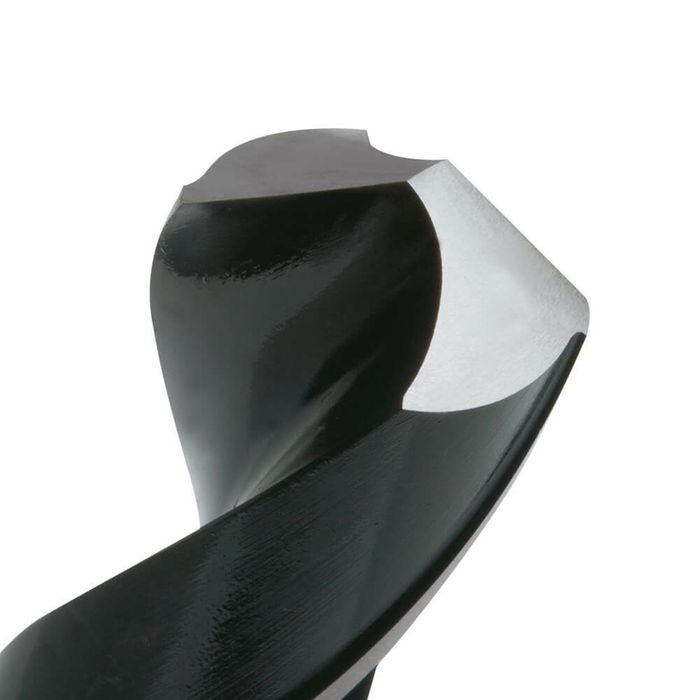

  • 118° standard point for general purpose applications
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: HSS
  • Finish: Blu
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Standard: Sutton
  • ISO: H
  • VDI: 41
  • Description: Cast Iron
  • Condition: Hardened and Tempered
  • Hardness: 55HRC

Applications

  • Effective use on aluminium, copper/brass, cast iron, and PVC plastic
  • Optimal use on steel

Specifications

  • BrandSutton Tools
  • Model Number D1882800
  • Barcode Number 9311963087573
  • Thread Diameter (mm) 28
  • Overall Length (mm) 152
  • Shank (mm) 12.5
  • Flute Length (mm) 86
  • Group Code D188
  • Type Reduced Shank Drill Bit
  • System of Measurement Metric
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Shank Form A
  • Point Angle 118
  • Point Form Form A
  • Point Tolerance h8
  • Max Cut Depth 5XD

Click here for catalogue information
