Sutton - Hand Tap - Intermediate - Tungsten Chrome

MF12 x 1.25
Stock Code:
SUT-M2051206
$31.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock

Description

DESCRIPTION

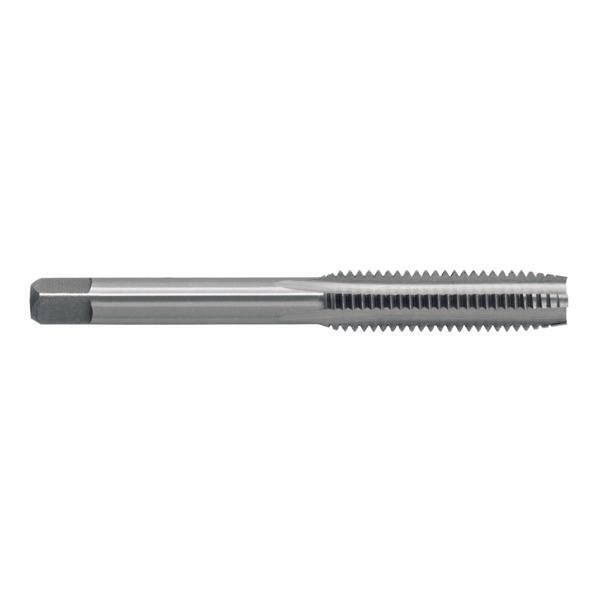

Sutton M2051206 MF12 x 1.25 Hand Tap - Intermediate - Tungsten Chrome

Suttons Hand Taps - MF - Intermediate

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

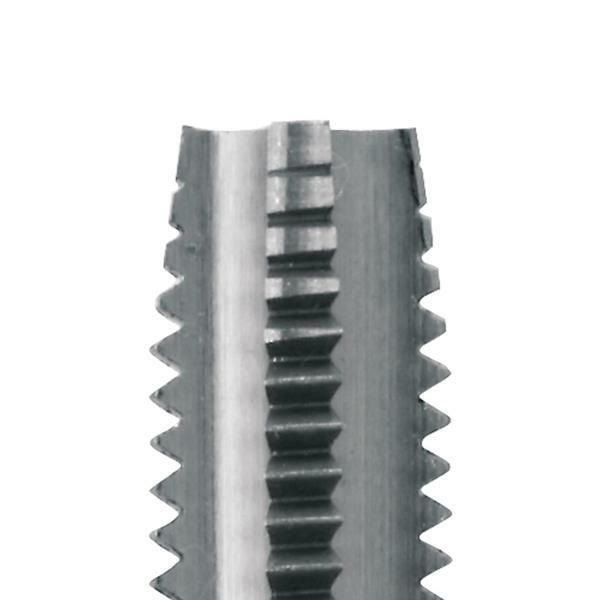

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Intermediate lead: used after a taper lead tap and are suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: ISO Metric Fine (MF)
  • Lead: Intermediate

Specifications

  • Model Number M2051206
  • Barcode Number 9311963025087
  • Pitch (mm) 1.25
  • Drill Size (mm) 10.8
  • Diameter Size (mm) MF12
  • Group CodeM205
  • Thread Form ISO Metric Fine (MF)
  • Material Tungsten Chrome Alloy (TCA)
  • Finish Bright
  • Lead Intermediate
  • Application N (for normal general purpose type materials)
  • Shank Form Square Shank
  • Max Cut Depth 1.5xD
  • Tap Type Straight Flute
