Sutton - Hand Tap - Taper - Tungsten Chrome

UNF 1/4 x 28
Stock Code:
SUT-M2200635
$12.41 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

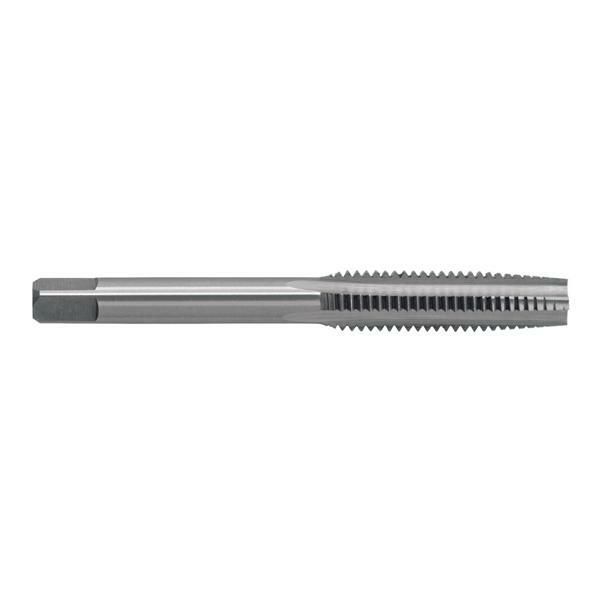

Sutton M2200635 UNF 1/4 x 28 Hand Tap - Taper - Tungsten Chrome

Suttons Hand Taps - UNF - Taper

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.

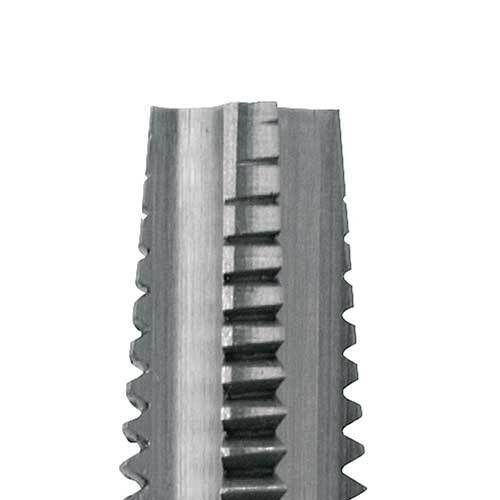

  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Taper lead: for starting a thread prior to using an intermediate or bottoming lead tap
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • BrandSutton Tools
  • Model Number M2200635
  • Barcode Number 9311963016399
  • Diameter (inch) 1/4
  • TPI28
  • Drill Size (mm) 5.5
  • Group Code M220
  • Thread Form UNF
  • Material Tungsten Chrome Alloy (TCA)
  • Finish Bright
  • Lead Taper
  • Application N (for normal general purpose type materials)
  • Shank Form Square Shank
  • Max Cut Depth 1.5xD
  • Tap Type Straight Flute

Click here for catalogue information
