Sutton - Jobber Drill Bit - Inox

5.5mm - DIN338 - HSS TiAlN
Stock Code:
SUT-D1850550
$10.52 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    3 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton D1850550 5.5mm Inox Jobber Drill Bits - DIN338 Carded - HSS TiAlN

Sutton Tools Jobber Drill Bits - Inox

  • Sutton Tools INOX jobber drills are an industrial quality drilling solution specially designed for superior performance in stainless steel
  • Tailored to overcome the difficult-to-machine material properties of stainless steel

Features

  • Specialized design achieves 70% more life in stainless steel than standard drill bits
  • Futura Nano PVD coated tip for ultimate wear resistance
  • Short flute with fast spiral for maximum rigidity & swarf control

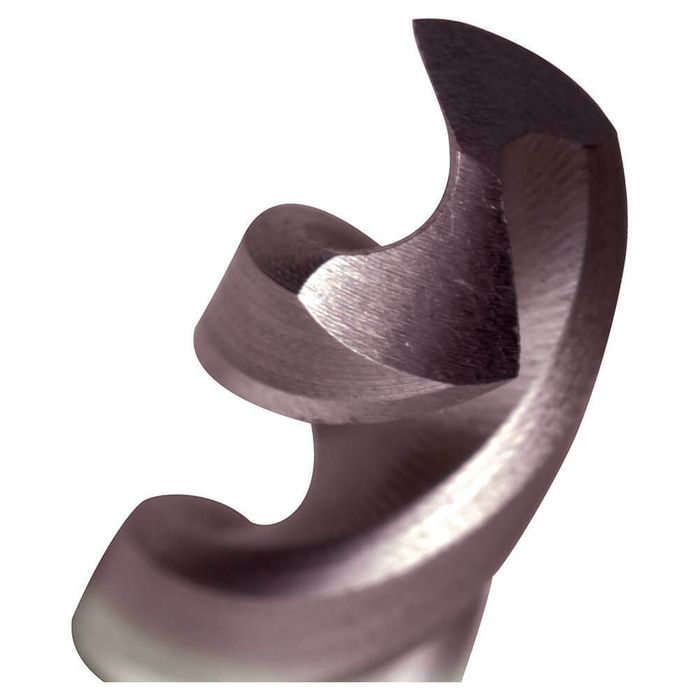

  • Unique point and stepped core designed for superb penetration and minimal work hardening
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance

Specifications

  • Designation: VA
  • Material: High Speed Steel
  • Finish: TiAIN
  • Maximum Cut Depth: 3XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB

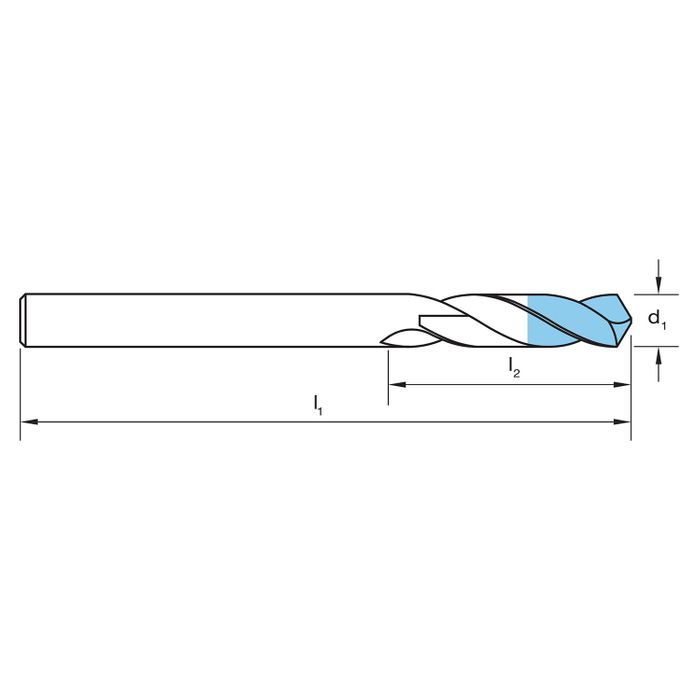

Specifications

  • Thread Diameter (mm) 5.5
  • Overall Length (mm) 93
  • Flute Length (mm) 36
  • Group Code D185
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel (HSS)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R40
  • Shank Form A
  • Point Angle 135
  • Point Form A
  • Maximum Cut Depth 3XD
  • Point Tolerance h8

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
