SKF - Tapered Bore Insert Bearing

UK 217 K 85 X 150 X 52.4/34 mm (YSA 217)
Stock Code:
UK217K_SKF
$322.19 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
10 On Order
Make an Enquiry
Add to Favourites

Description

UK 217 K

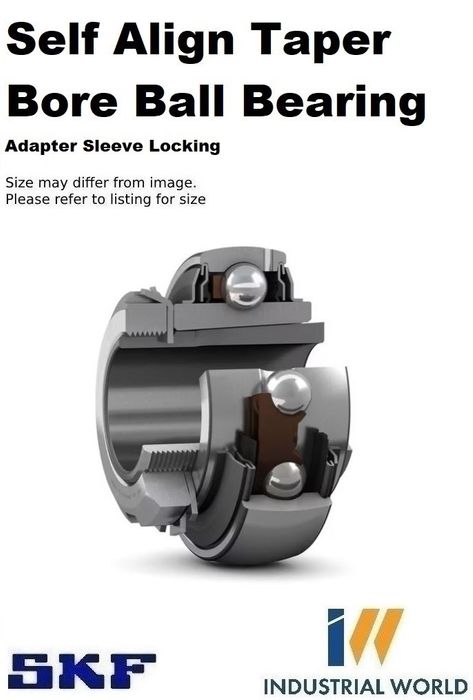

Insert bearing with tapered bore and adapter sleeve locking

Insert bearings are based on sealed deep groove ball bearings. This variant, with a tapered bore, is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels
DIMENSIONS
Bore diameter
85 mm
Outside diameter
150 mm
Width, total
52.4 mm
Width, inner ring
52.4 mm
Width, outer ring
34 mm
PERFORMANCE
Basic dynamic load rating
83.2 kN
Basic static load rating
64 kN
Limiting speed
1750 r/min
PROPERTIES
Retaining feature, inner ring
Adapter sleeve
Bore type
Tapered
Rolling elements
Balls
Outer ring type
Spherical
Inner ring extension
Symmetrically on both sides
Rubber seating ring
Without
Material, bearing
Bearing steel
Coating
Without
Sealing
Seal and flinger on both sides
Sealing type
Contact, standard
Lubricant
Grease
Relubrication feature
With
LOGISTICS
EAN code
07316579562478
Pack code
12
Products per pack
1
Collecting pack quantity
1
Products per pallet
34
Pack gross weight
3.19 kg
Pack length
182 mm
Pack height
182 mm
Pack width
98 mm
Pack volume
3.246 dm³
Product net weight
2.45 kg
eClass code
23-05-16-02
UNSPSC code
31171536


View product table

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    85 mm
  • Material:
    Chrome Steel
  • Width:
    52.4 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Diameter Outside:
    150 mm
