SKF - Tapered Bore Insert Bearing

UK 213 K 65 X 120 X 43.5/27 mm (YSA 213)
Stock Code:
UK213K_SKF
$164.01 incl GST

Stock Locations

  • Ballarat:
    20 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

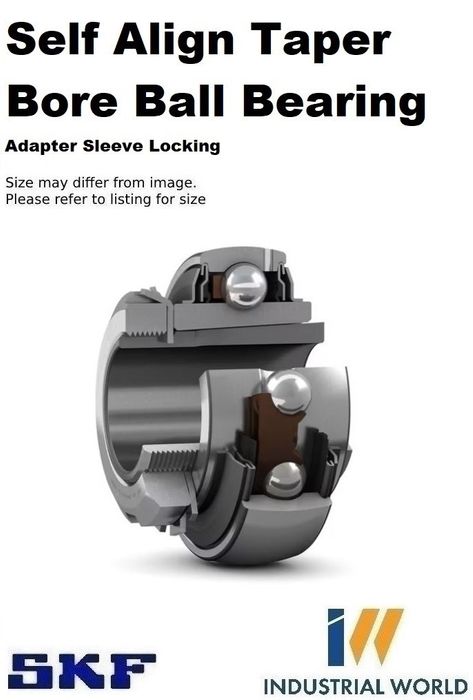

YSA 213-2FK
Insert bearing with tapered bore and adapter sleeve locking

Insert bearings are based on sealed deep groove ball bearings. This variant, with a tapered bore, is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Shaft diameter60 mm
Bore diameter65 mm
Outside diameter120 mm
Width, total43.5 mm
Width, inner ring43.5 mm
Width, outer ring27 mm

Performance

Basic dynamic load rating57.2 kN
Basic static load rating40 kN
Limiting speed3 000 r/min

Properties

Retaining feature, inner ringAdapter sleeve
Bore typeTapered
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionSymmetrically on both sides
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingWithout
SealingSeal and flinger on both sides
Sealing typeContact, standard
LubricantGrease
Relubrication featureWith

Logistics

Product net weight1.31 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    65 mm
  • Material:
    Chrome Steel
  • Width:
    43.5 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Diameter Outside:
    120 mm
